CV1E180

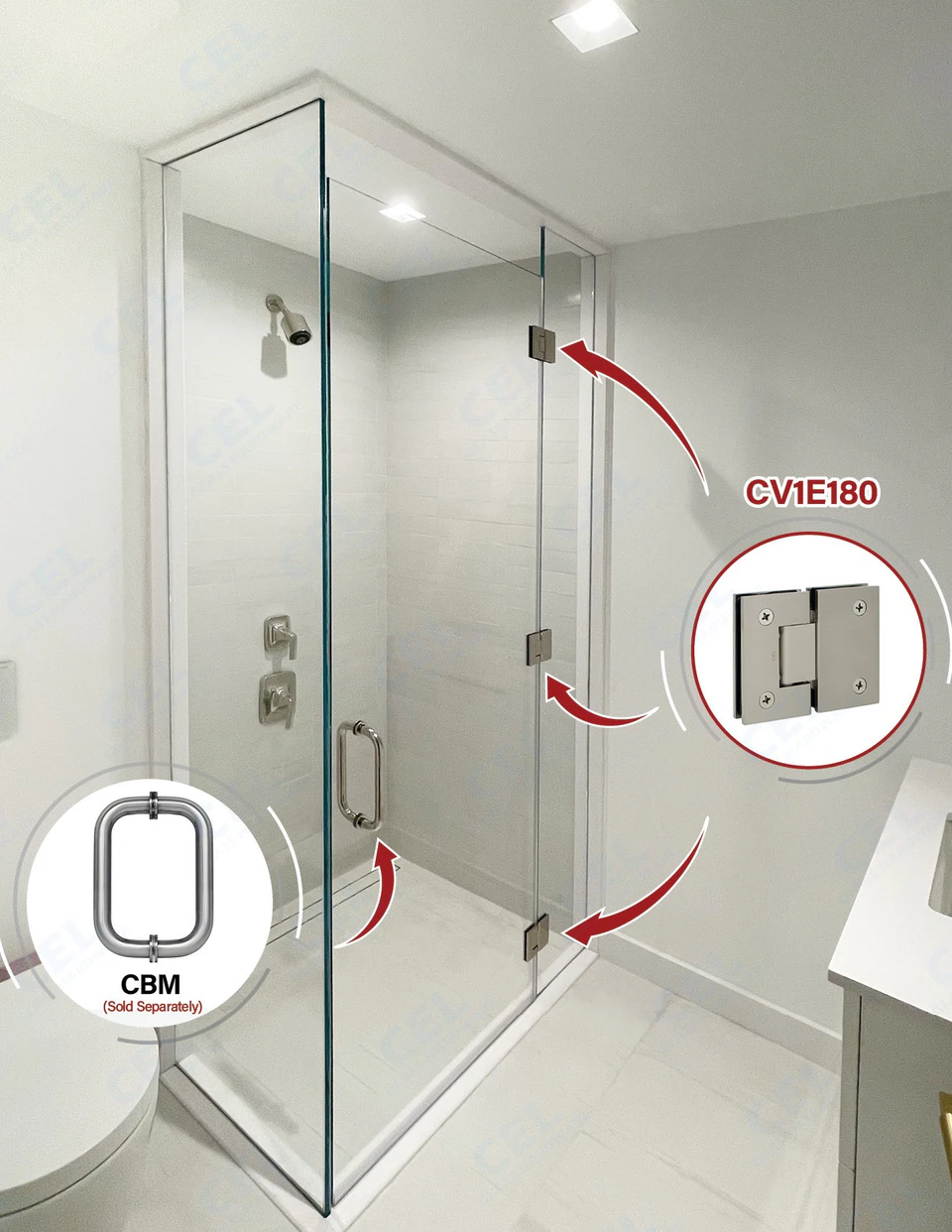

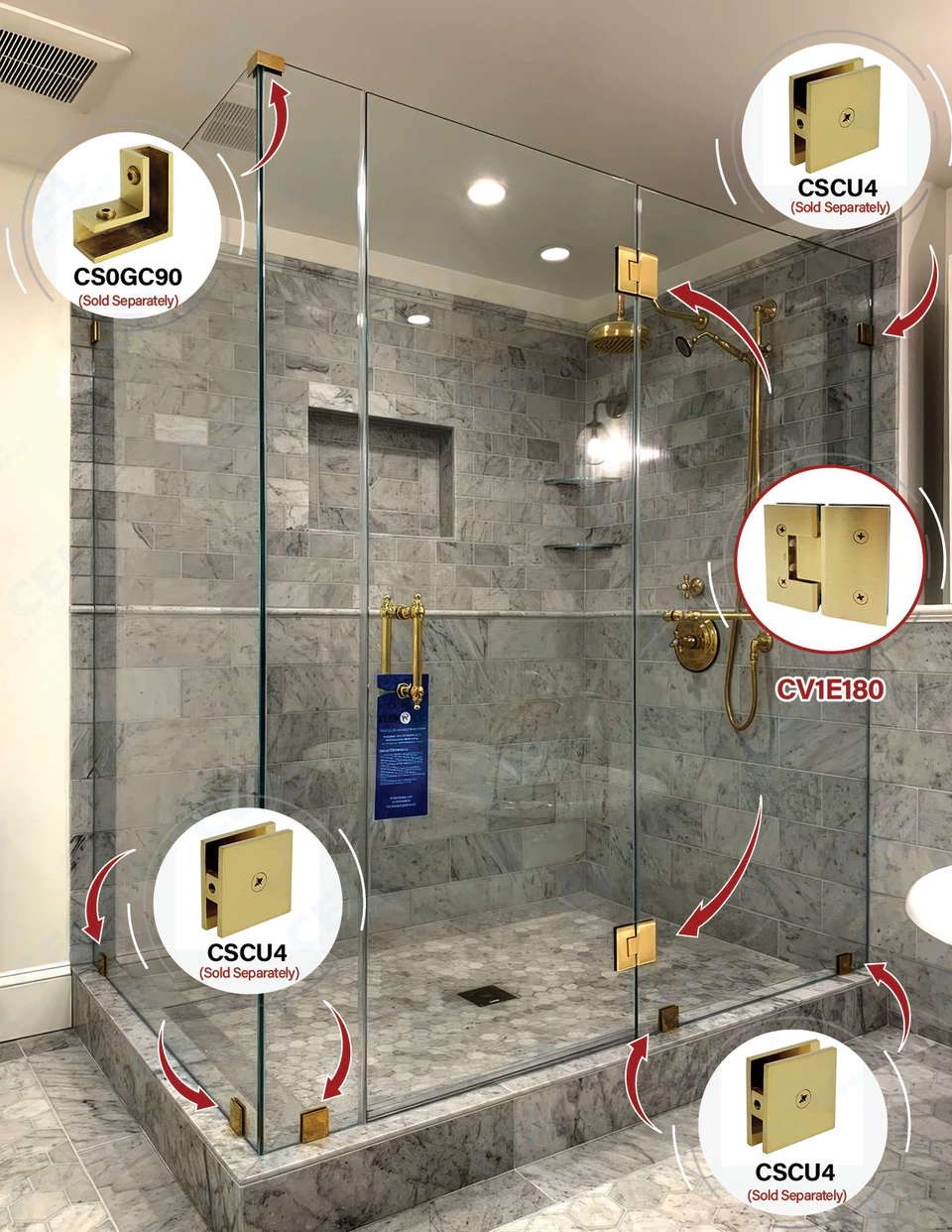

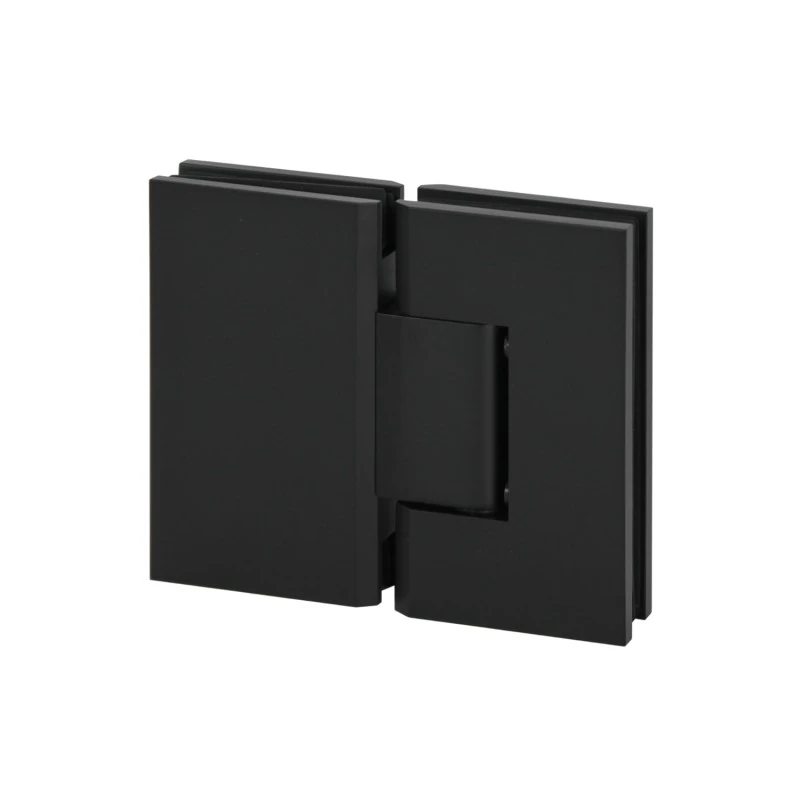

180 Degree Glass-to-Glass Hinge
180 Degree Glass to Glass Hinge
Product views25 images
AvailabilityConfirm size & finish
180 Degree Glass to Glass Hinge
| Height (inches) | 3 15/16" |
| Edge Profile | Square |
| Material | Brass |
| Adjustable | NO |
| Self-Centering | YES |
| Max. Door Width (inches) | 36" |
| Width (inches) | 2 1/4" |
| Width-Sidelite Portion (inches) | 2 1/4" |
| Mounting Type （Degree） | Glass to Glass (180°) |
| Glazing Thickness (Inches) | 3/8" to 1/2" |
| 5 Degree Pre-Set | NO |
| Max. Door Weight for 2 Hinge (lbs) | 100 LBS |
| Max. Door Weight for 3 Hinge (lbs) | 130 LBS |
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2"
Hinge Swings: 90 degree in and 90 degree Out
Included: Hinge Body, Gaskets, Screws and Template
Use for Residential Bath and Commercial Hotel Applications.
Gasket:
For 3/8" (10mm) Glass, Use one thick Gasket on each side
For 1/2" (12mm) Glass, Use one thin Gasket on each side
Care & Cleaning Guidelines:
Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
| Option | Values |
|---|---|
| Finish/Color | Matte Black, Brushed Nickel, Polished Chrome, Satin Brass, Polished Nickel |
| SKU / reference | Model | Options | Catalog status |
|---|---|---|---|

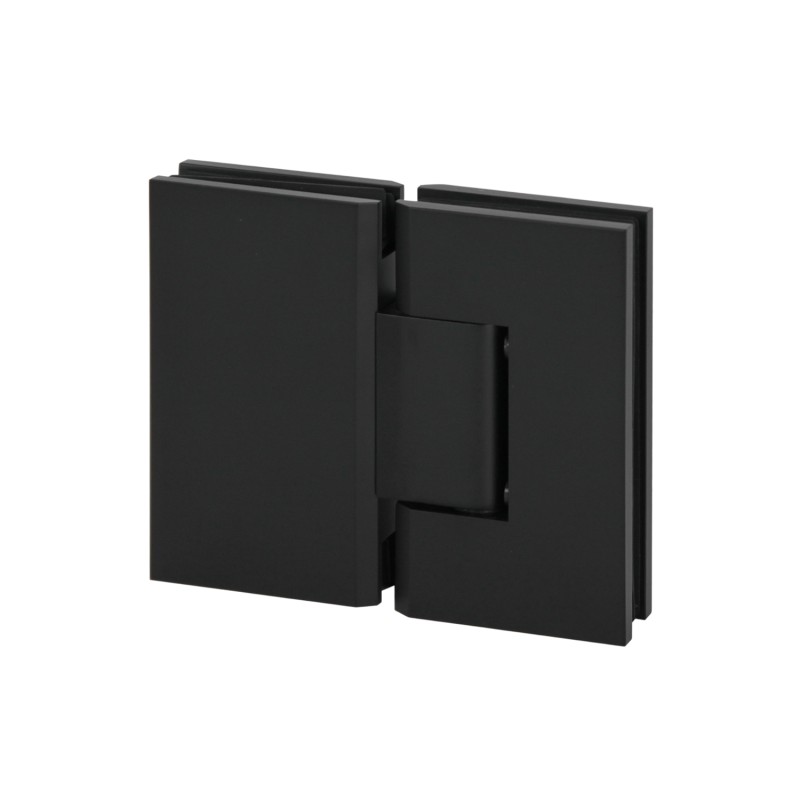

| CV1E180MB | CV1E180 | Finish/Color: Matte Black | Listed in supplier catalog |
| CV1E180BN | CV1E180 | Finish/Color: Brushed Nickel | Listed in supplier catalog |
| CV1E180CH | CV1E180 | Finish/Color: Polished Chrome | Listed in supplier catalog |
| CV1E180SB | CV1E180 | Finish/Color: Satin Brass | Listed in supplier catalog |
| CV1E180PN | CV1E180 | Finish/Color: Polished Nickel | Listed in supplier catalog |
