Glass HardwareView this model at CEL Glass Hardware
CV1E037

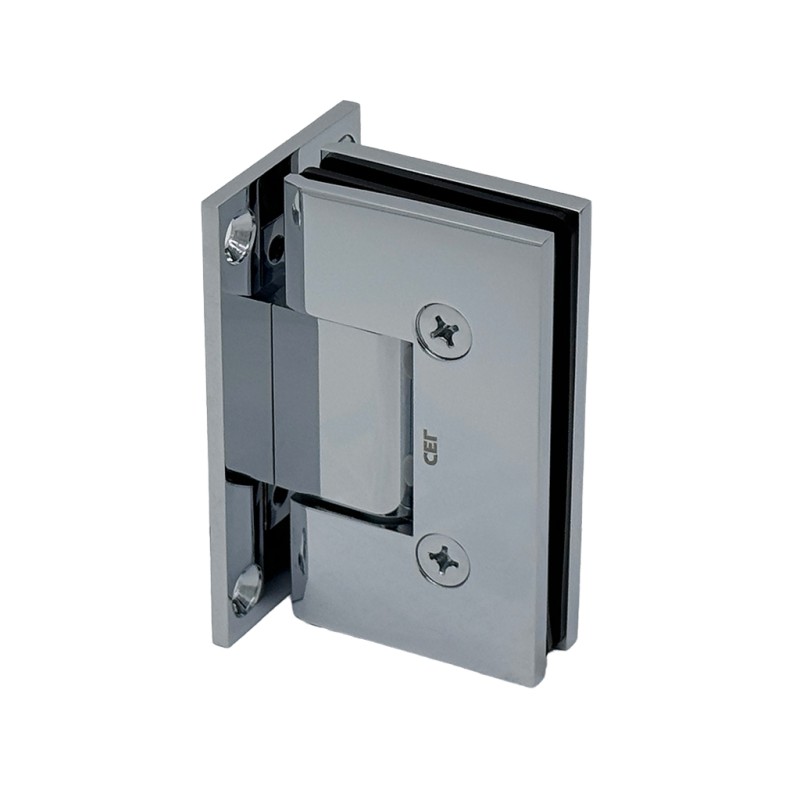

Wall Mount Full Back Plate Hinge for Shower Door
Hinge Swings: 90 degree in and 90 degree Out
Product views14 images
AvailabilityConfirm size & finish
- Glass Fabrication Required
- YES
- MATERIAL
- Brass
- Edge Profile
- Square
- 5 Degree Pre-Set
- NO
- Mounting Type
- Wall/Ceiling Mount
- Glazing Thickness (inches)
- 3/8" to 1/2"
- Back Plate
- Full
- Adjustable
- NO
- Glass to Glass/Wall Angle (Degree)
- 90°
MODEL# CV1E037
Wall Mount Full Back Plate Hinge for Shower Door
| Height (inches) | 4" |
| Max. Door Width for 2 Hinges (inches) | 36" |
| Max. Door Width for 3 Hinges (inches) | 36" |
| Width (inches) | 2 5/16" |
| Max. Door Weight for 2 Hinge (lbs) | 110 LBS |
| Max. Door Weight for 3 Hinge (lbs) | 140 LBS |
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2"
Hinge Swings: 90 degree in and 90 degree Out
Included: Hinge Body, Gaskets, Screws and Template
Use for Residential Bath and Commercial Hotel Applications.
Adjustable to Any Angle Up to 90 Degrees without Removing Door
Gasket:
For 3/8" (10mm) Glass, Use one thick Gasket on each side
For 1/2" (12mm) Glass, Use one thin Gasket on each side
Care & Cleaning Guidelines:
Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
| Option | Values |
|---|---|
| Finish/Color | Polished Chrome, Matte Black, Brushed Nickel, Satin Brass, Polished Nickel |
| SKU / reference | Model | Options | Catalog status |
|---|---|---|---|
| CV1E037CH | CV1E037 | Finish/Color: Polished Chrome | Listed in supplier catalog |
| CV1E037MB | CV1E037 | Finish/Color: Matte Black | Listed in supplier catalog |
| CV1E037BN | CV1E037 | Finish/Color: Brushed Nickel | Listed in supplier catalog |
| CV1E037SB | CV1E037 | Finish/Color: Satin Brass | Listed in supplier catalog |
| CV1E037PN | CV1E037 | Finish/Color: Polished Nickel | Listed in supplier catalog |
