CV1E044

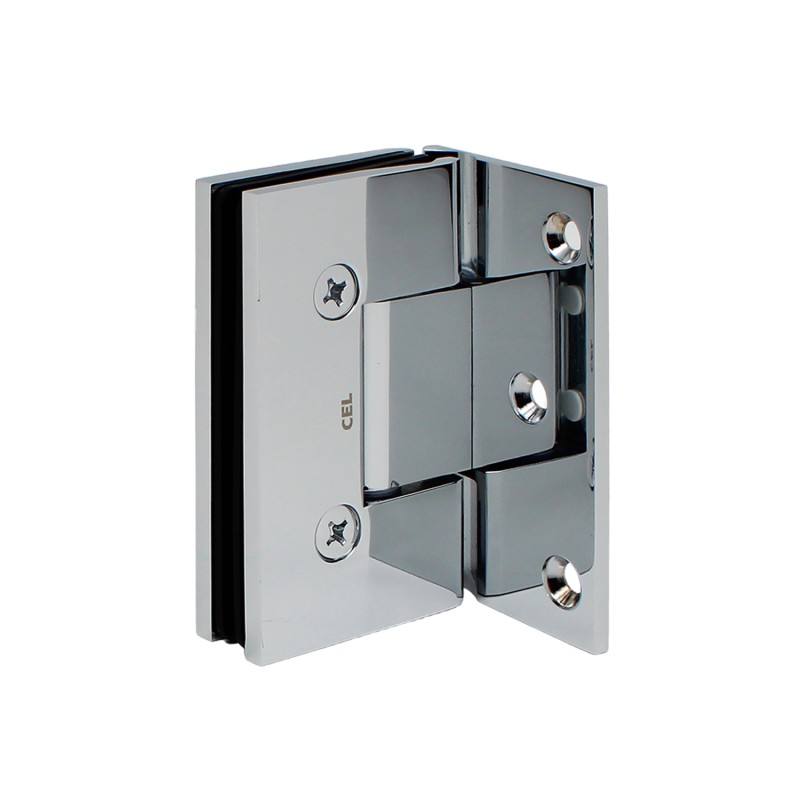

Wall Mount Offset Back Plate Hinge for Frameless Shower Door
Hinge Swings: 90 degree in and 90 degree Out
Product views21 images
AvailabilityConfirm size & finish
- Glass Fabrication Required
- YES
- MATERIAL
- Brass
- Edge Profile
- Square
- 5 Degree Pre-Set
- NO
- Mounting Type
- Wall/Ceiling Mount
- Glazing Thickness (inches)
- 3/8" to 1/2"
- Back Plate
- Offset
- Adjustable
- NO
- Glass to Glass/Wall Angle (Degree)
- 90°
MODEL# CV1E044
Wall Mount Offset Back Plate Hinge for Frameless Shower Door
| Height (inches) | 3 15/16" |
| Self-Centering | YES |
| Max. Door Width for 3/8 Glass (inches) | 34" |
| Max. Door Width for 1/2 Glass (inches) | 32" |
| Width (inches) | 2 1/4" |
| 5 Degree Pre-Set | NO |
| Max. Door Weight for 2 Hinge (lbs) | 100 LBS |
| Max. Door Weight for 3 Hinge (lbs) | 130 LBS |
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2"
Hinge Swings: 90 degree in and 90 degree Out
Included: Hinge Body, Gaskets, Screws and Template
Use for Residential Bath and Commercial Hotel Applications.
Gasket:
For 3/8" (10mm) Glass, Use one thick Gasket on each side
For 1/2" (12mm) Glass, Use one thin Gasket on each side
Care & Cleaning Guidelines:
Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
| Option | Values |
|---|---|
| Finish/Color | Polished Chrome, Brushed Nickel, Matte Black, Satin Brass, Polished Nickel |
| SKU / reference | Model | Options | Catalog status |
|---|---|---|---|
| CV1E044CH | CV1E044 | Finish/Color: Polished Chrome | Listed in supplier catalog |
| CV1E044BN | CV1E044 | Finish/Color: Brushed Nickel | Listed in supplier catalog |
| CV1E044MB | CV1E044 | Finish/Color: Matte Black | Listed in supplier catalog |
| CV1E044SB | CV1E044 | Finish/Color: Satin Brass | Listed in supplier catalog |
| CV1E044PN | CV1E044 | Finish/Color: Polished Nickel | Listed in supplier catalog |
