CGEN Medium Duty
CGEN580
5 Degree Pre-Set, 180 Degree Glass to Glass Hinge for Frameless Shower Door
View detailsGlass HardwareView this model at CEL Glass Hardware
CGEN092
90 Degree Glass to Glass Hinge for Frameless Shower Door
Hinge Swings: 90 degree in and 90 degree Out
Product views17 images
AvailabilityConfirm size & finish
- Glass Fabrication Required
- YES
- MATERIAL
- Brass
- Edge Profile
- Square
- 5 Degree Pre-Set
- NO
- Mounting Type
- Glass to Glass
- Glazing Thickness (inches)
- 3/8" to 1/2"
- Adjustable
- NO
- Glass to Glass/Wall Angle (Degree)
- 90°

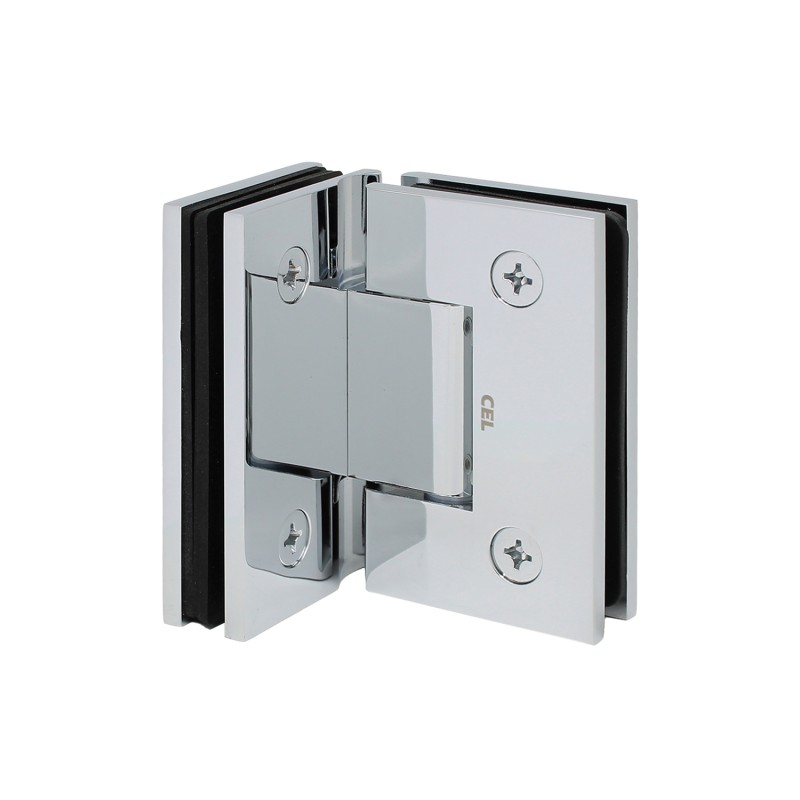

Model# CGEN092
90 Degree Glass to Glass Hinge for Frameless Shower Door
Compare to : GEN092
| Height (inches) | 3 1/2" |
| Edge Profile | Square |
| Material | Brass |
| Adjustable | NO |
| Self-Centering | YES |
| Max. Door Width for 2 Hinges (inches) | 28" |
| Max. Door Width for 3 Hinges (inches) | 32" |
| Width -Door Portion (inches) | 2 3/16" |
| Width-Sidelite Portion (inches) | 2 1/4" |
| Mounting Type （Degree） | Wall Mount (90°) |
| Glazing Thickness (Inches) | 3/8" to 1/2" |
| 5 Degree Pre-Set | NO |
| Max. Door Weight for 2 Hinge (lbs) | 80 LBS |
| Max. Door Weight for 3 Hinge (lbs) | 120 LBS |
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2"
Hinge Swings: 90 degree in and 90 degree Out
Included: Hinge Body, Gaskets, Screws and Template
Use for Residential Bath and Commercial Hotel Applications.
Gasket:
For 3/8" (10mm) Glass, Use one thick Gasket on each side
For 1/2" (12mm) Glass, Use one thin Gasket on each side
Care & Cleaning Guidelines:
Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
Recommendation:Use of only tempered safety glass. Do not power tool when installing these hinges.
| Option | Values |
|---|---|
| Finish/Color | Polished Chrome, Brushed Nickel, Matte Black, Satin Brass, Brushed Bronze |
| SKU / reference | Model | Options | Catalog status |
|---|---|---|---|
| CGEN092CH | CGEN092 | Finish/Color: Polished Chrome | Listed in supplier catalog |
| CGEN092BN | CGEN092 | Finish/Color: Brushed Nickel | Listed in supplier catalog |
| CGEN092MB | CGEN092 | Finish/Color: Matte Black | Listed in supplier catalog |
| CGEN092SB | CGEN092 | Finish/Color: Satin Brass | Listed in supplier catalog |
| CGEN092BBRZ | CGEN092 | Finish/Color: Brushed Bronze | Listed in supplier catalog |
