CGEN074
Wall Mount Short Back Plate Hinge for Shower Door
Hinge Swings: 90 degree in and 90 degree Out
Product views17 images
AvailabilityConfirm size & finish
- Glass Fabrication Required
- YES
- MATERIAL
- Brass
- Edge Profile
- Square
- Mounting Type
- Wall/Ceiling Mount
- Glazing Thickness (inches)
- 3/8" to 1/2"
- FINISH/COLOR (source default)
- Brushed Nickle
- Back Plate
- Short
- Adjustable
- NO
- Glass to Glass/Wall Angle (Degree)
- 90°
MODEL#CGEN074

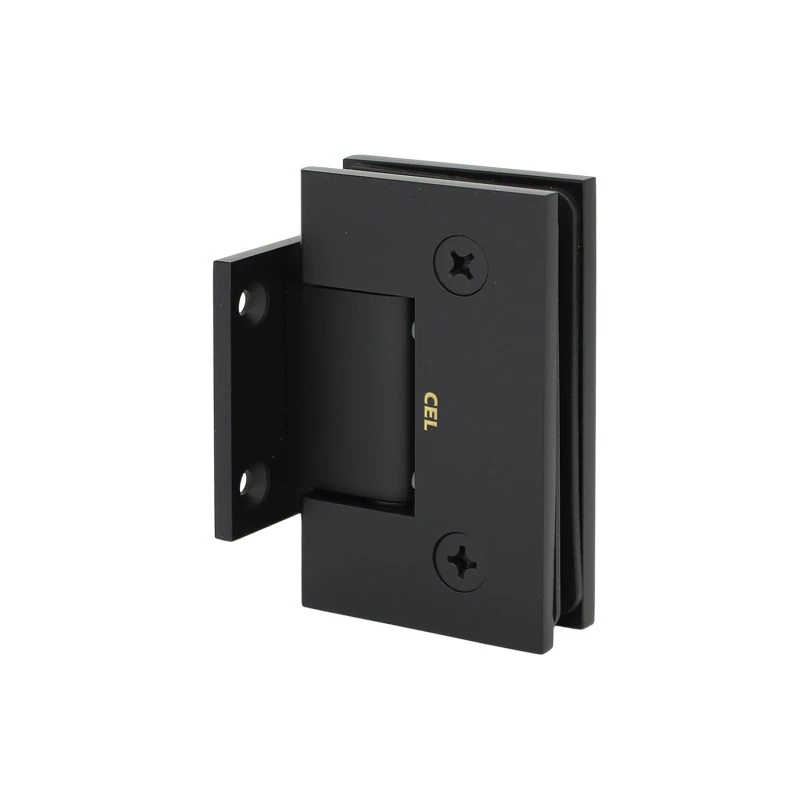

Wall Mount Short Back Plate Hinge for Shower Door
| Height (inches) | 3 1/2" |
| Self-Centering | YES |
| Max. Door Width for 2 Hinges (inches) | 28" |
| Max. Door Width for 3 Hinges (inches) | 32" |
| Width (inches) | 2 3/16" |
| Max. Door Weight for 2 Hinge (lbs) | 80 LBS |
| Max. Door Weight for 3 Hinge (lbs) | 120 LBS |
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2"
Hinge Swings: 90 degree in and 90 degree Out
Included: Hinge Body, Gaskets, Screws and Template
Use for Residential Bath and Commercial Hotel Applications.
Gasket:
For 3/8" (10mm) Glass, Use one thick Gasket on each side
For 1/2" (12mm) Glass, Use one thin Gasket on each side
Care & Cleaning Guidelines:
Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
| Option | Values |
|---|---|
| Finish/Color | Matte Black, Brushed Nickel, Polished Chrome, Satin Brass |
| SKU / reference | Model | Options | Catalog status |
|---|---|---|---|
| CGEN074MB | CGEN074 | Finish/Color: Matte Black | Listed in supplier catalog |
| CGEN074BN | CGEN074 | Finish/Color: Brushed Nickel | Listed in supplier catalog |
| CGEN074CH | CGEN074 | Finish/Color: Polished Chrome | Listed in supplier catalog |
| CGEN074SB | CGEN074 | Finish/Color: Satin Brass | Listed in supplier catalog |
