CC0L337

MODEL NO. CC0L337

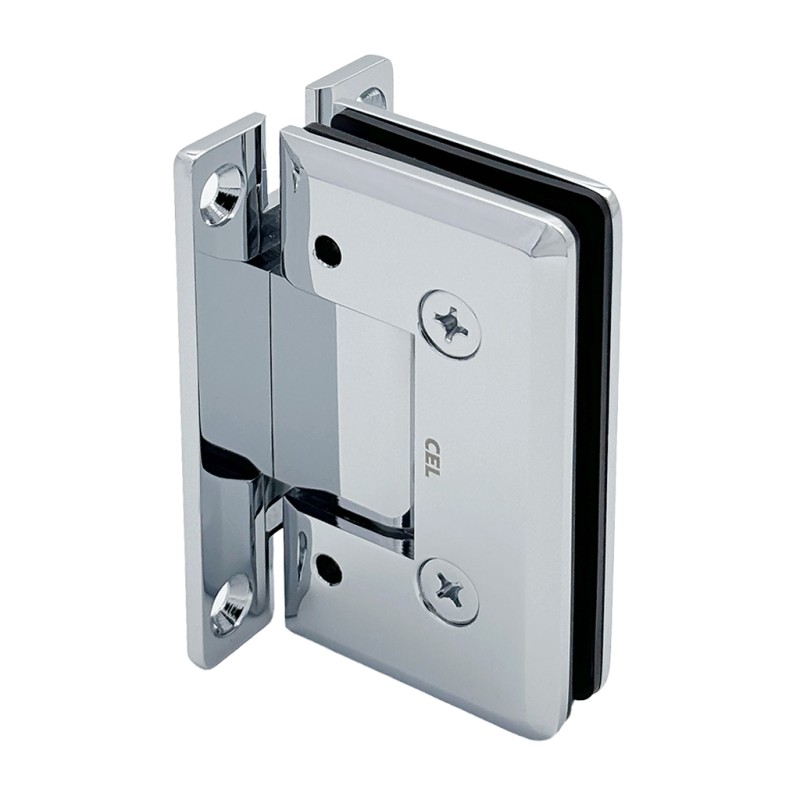

Adjustable Wall Mount 'H' Back Plate Hinge for Frameless Shower Door

Height (inches); 4"

Width  (inches): 2-5/16"

Specifications:

Designed for Glass Thickness: 3/8" to 1/2"

Hinge Swings: 90 degree in and 90 degree Out

Max. Door Width  (inches): 36"

Max. Door Weight for 3 Hinge (lbs): 140 lbs

Max. Door Weight for 2 Hinge (lbs): 110 lbs

Included:: Hinge Body, Gaskets, Screws and Template

Use for Residential Bath and Commercial Hotel Applications.

Available in Several Finished

Adjustable to Any Angle Up to 90 Degrees without Removing Door

Gasket:

For 3/8" (10mm) Glass, Use one thick Gasket on each side

For 1/2" (12mm) Glass, Use one thin Gasket on each side

Care & Cleaning Guidelines:

Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.

Recommendation: Use of only tempered safety glass. Do not use power too
