Glass HardwareView this model at CEL Glass Hardware
CC0L045

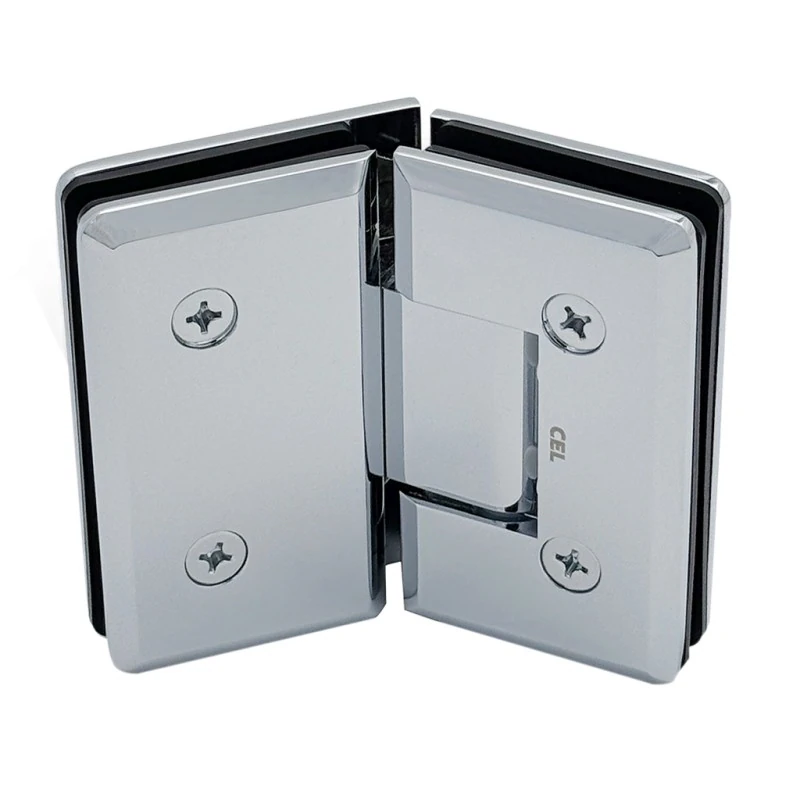

135 Degree Glass to Glass Hinge For Frameless Shower door
135 Degree Glass to Glass Hinge
Product views12 images
AvailabilityConfirm size & finish
135 Degree Glass to Glass Hinge
| Height (inches) | 3 15/16" |
| Edge Profile | Beveled |
| Material | Brass |
| Adjustable | NO |
| Self-Centering | YES |
| Max. Door Width(inches) | 36" |
| Width (inches) | 2 5/16" |
| Width-Sidelite Portion (inches) | 2 11/16" |
| Mounting Type (Degree) | Glass to Glass (135°) |
| Glazing Thickness (Inches) | 3/8" to 1/2" |
| 5 Degree Pre-Set | NO |
| Max. Door Weight for 2 Hinge (lbs) | 110 LBS |
| Max. Door Weight for 3 Hinge (lbs) | 140 LBS |
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2"
Hinge Swings: 90 degree in and 90 degree Out
Included: Hinge Body, Gaskets, Screws and Template
Use for Residential Bath and Commercial Hotel Applications.
Gasket:
For 3/8" (10mm) Glass, Use one thick Gasket on each side
For 1/2" (12mm) Glass, Use one thin Gasket on each side
Care & Cleaning Guidelines:
Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
| Option | Values |
|---|---|
| Finish/Color | Polished Chrome, Brushed Nickel, Matte Black, Satin Brass |
| SKU / reference | Model | Options | Catalog status |
|---|---|---|---|
| CC0L045CH | CC0L045 | Finish/Color: Polished Chrome | Listed in supplier catalog |
| CC0L045BN | CC0L045 | Finish/Color: Brushed Nickel | Listed in supplier catalog |
| CC0L045MB | CC0L045 | Finish/Color: Matte Black | Listed in supplier catalog |
| CC0L045SB | CC0L045 | Finish/Color: Satin Brass | Listed in supplier catalog |
