UC79BBRZ
CRL Brushed Bronze Oversized Fixed Panel U-Clamp
CRL Brushed Bronze Oversized Fixed Panel U-Clamp
Product views1 image
AvailabilityConfirm size & finish

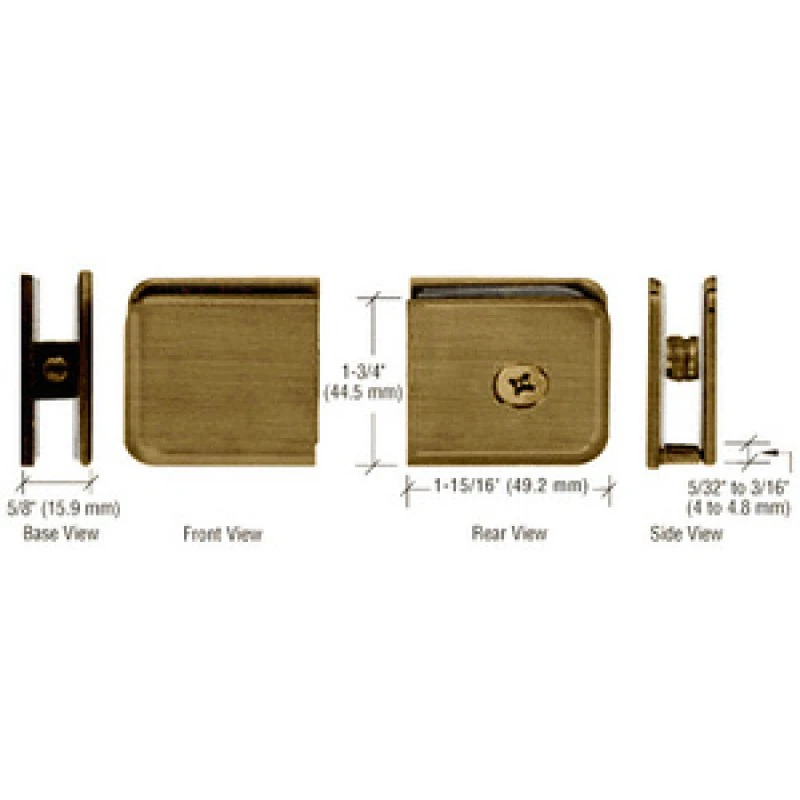

UC79BBRZ,CRL Brushed Bronze Oversized Fixed Panel U-Clamp
Product details
- Finish/Color:Brushed Bronze
- Glazing Thickness5/16 in. To 1/2 in. (8 mm To 12 mm)
- Height1-15/16 in. (49 mm)
- MaterialBrass
- Mounting TypeWall Mount
- Width1-3/4 in. (44 mm)
Product Overview
- Recommended When Using 1/2" (12 mm) Glass
- Use Monolithic Tempered Glass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
- Solid Brass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- Glass Fabrication Required to Accommodate Clamps
CRL Oversized Fixed Panel U-Clamps perform the same function as our Standard Fixed Panel U-Clamps. They are especially recommended for 1/2" (12 mm) thick glass installations where a hole drilling measurement of one and a half times glass thickness (from the edge of the glass to the closest edge of the hole) is required by the temperer.
Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm) Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting Screw and Clear Gaskets.
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.
| SKU / reference | Model | Options | Catalog status |
|---|---|---|---|
| UC79BBRZ | UC79BBRZ | Listed in supplier catalog |
