S0GC90BBRZ

• Finish/Color:

  Brushed Bronze
• Glass To Glass Angle

  90
• Glazing Thickness

  5/16 in. To 1/2 in. (8 mm To 12 mm)
• Material

  Brass
• Mounting Type

  Glass To Glass

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Solid Brass
• Use Monolithic Tempered Glass
• Assists With Shear Forces
• Holds Glass Panels in Position While Sealant Cures

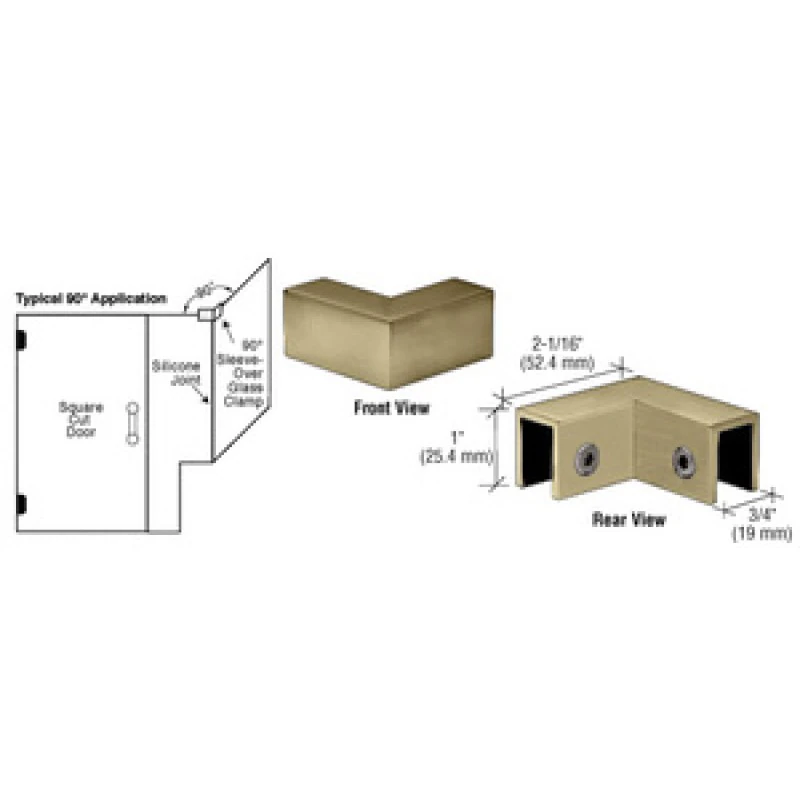

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws
