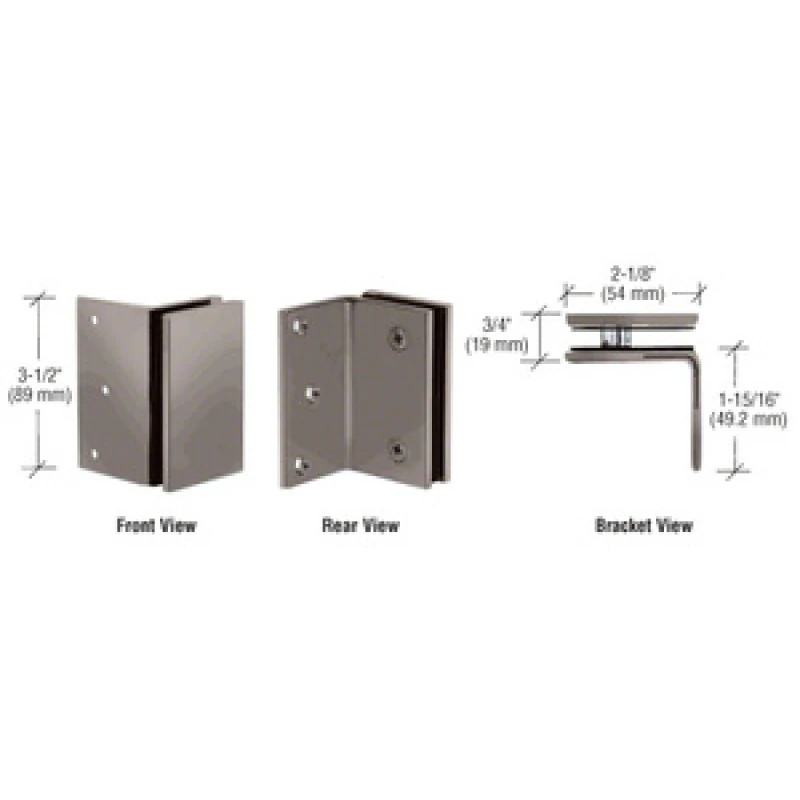

GE90SGM

• Square Corner Clamps Match Configuration of Our Geneva, Concord, Vienna, Cardiff, and Senior Cardiff Series Hinges
• For 5/16" to 1/2" (8 to 12 mm) Glass
• Solid Brass
• Style to Match Our Most Popular Clamps

CRL Geneva Series Wall Mount Brackets are designed to work with 5/16" to 1/2" (8 to 12 mm) thick glass. Can also be used as a horizontal shelf bracket. They match the configuration of many of our most popular hinge and clamp series. They feature square corners and edges in several decorator finishes and are constructed of solid brass. A truly stylish way to attach glass to walls. Drawings, templates and custom finishes are available upon request.

SPECIFICATIONS
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets and Mounting Screws Hole Diameter
Required: Two 3/4" (19 mm) Holes Per Panel
Replacement Hardware: CRL P612 for Replacement Screws
