Door Closer
FHC960
FHC Medium Duty Spring Overhead Concealed Closer Body with Mounting Clips, Extended 3/4" Spindle
View detailsGlass HardwareView this model at CEL Glass Hardware
CRL9040S3
CRL9040S, CRL Floor Mounted Closer Flat Tapered Aluminum Spindle
Product Warning:To determine the actual door clearance from finished floor, add 3/16" (5 mm) to the collar height.Example: 1/8" (3 mm) collar height + 3/16" (5 mm) = 5/16" (8 mm) door clearance from finished floor.
Product views6 images
AvailabilityConfirm size & finish
- Brand
- CR. LAURENCE
- Material
- Aluminum
- Style
- Flat Tapered
- Standard Door Clearance
- 1/2"
CRL9040S, CRL Floor Mounted Closer Flat Tapered Aluminum Spindle
- Material: Aluminum
- Style: Flat Tapered
- Standard Door Clearance: 1/2"
- For Use with all CRL Models, Jackson® 900, and DORMA® BTS80 Series Floor Mounted Door Closers

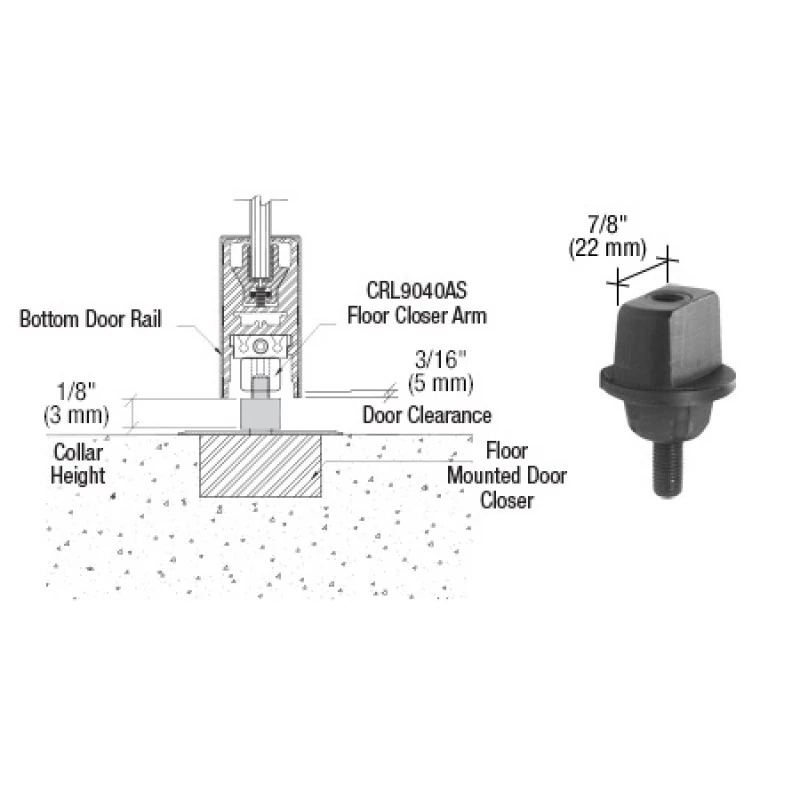

Product Warning:
To determine the actual door clearance from finished floor, add 3/16" (5 mm) to the collar height.
Example: 1/8" (3 mm) collar height + 3/16" (5 mm) = 5/16" (8 mm) door clearance from finished floor.
| Option | Values |
|---|---|
| Collar Height | 1/8", 5/16", 1/2", 3/4", 7/8", 1-1/8" |
| SKU / reference | Model | Options | Catalog status |
|---|---|---|---|
| CRL9040S3 | CRL9040S3 | Collar Height: 1/8" | Listed in supplier catalog |
| CRL9040S8 | CRL9040S8 | Collar Height: 5/16" | Listed in supplier catalog |
| CRL9040S13 | CRL9040S13 | Collar Height: 1/2" | Listed in supplier catalog |
| CRL9040S18 | CRL9040S18 | Collar Height: 3/4" | Listed in supplier catalog |
| CRL9040S23 | CRL9040S23 | Collar Height: 7/8" | Listed in supplier catalog |
| CRL9040S28 | CRL9040S28 | Collar Height: 1-1/8" | Listed in supplier catalog |
