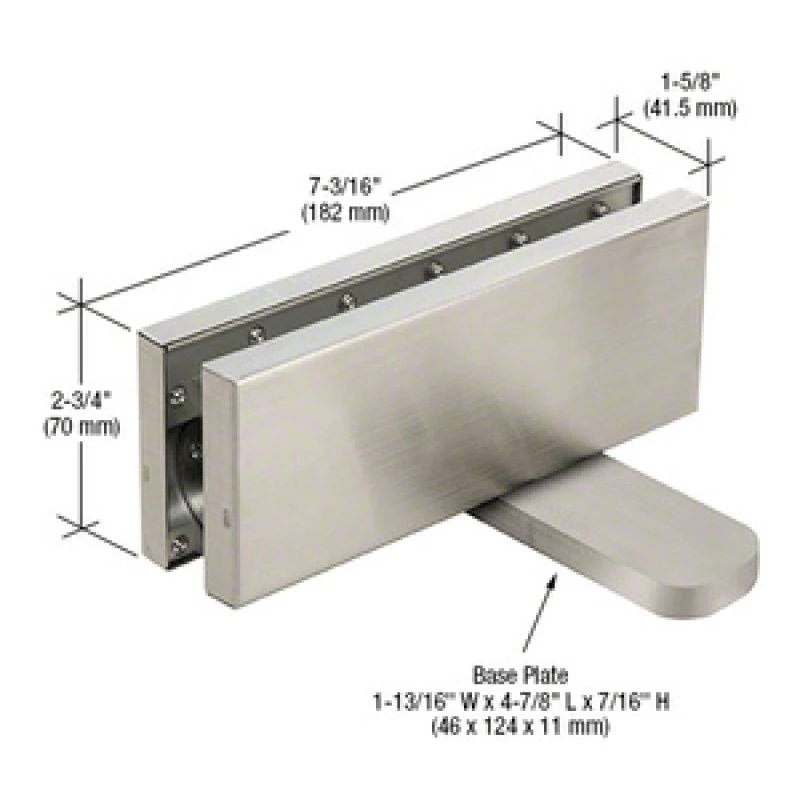

CRL380BS

• 2-9/16" (65 mm) Pivot Point
• Available in Brushed and Polished Stainless, Satin Anodized, and Matte Black Finishes
• Accommodates 3/8" to 1/2" (10 to 12 mm) Tempered Glass
• Flush Mount - No Hole Required in the Floor
• For Interior Use Only
• Must be used with PH21A top patches

CRL380 Series Hydraulic Patch Fittings are medium duty for interior use. There are two adjustment screws to adjust the latching speed and the swing speed. The Hydraulic Patch Fitting is designed for installation without the need for any other floor or overhead closing devices. Maximum door width is 39" (1 m) and maximum weight is 220 lbs (100kg). Fitting can accommodate 3/8" (10 mm), and 1/2" (12 mm) tempered glass. Glass fabrication (cut-out) is required.

Product Warning:

Custom headers with 2-9/16" [65 mm] pivot points must be ordered if needed. These fittings are not compatible with the stock NH36xx and NH72xx.
