Glass HardwareView this model at CEL Glass Hardware
CEL045CH

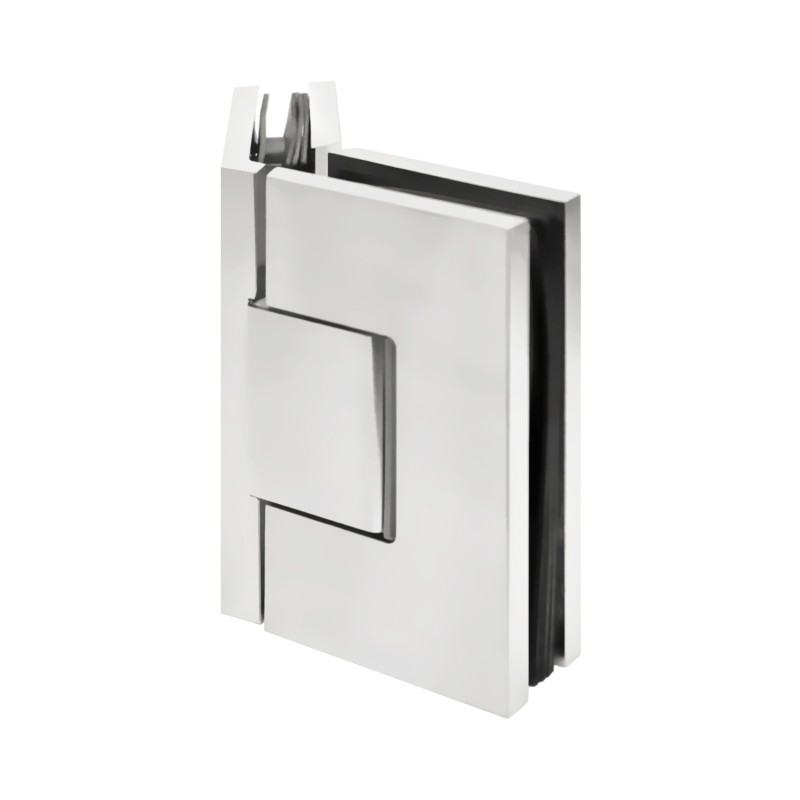

CEL045, Heavy Duty Glass-to-Glass 135° with Cover Plate Hinge, For 3/8"~1/2" Glass
Hinge Swings: 90 degree in and 90 degree Out
Product views25 images
AvailabilityConfirm size & finish
CEL045, Heavy Duty Glass-to-Glass 135° with Cover Plate Hinge, For 3/8"~1/2" Glass
| Height (inches) | 4" |
| Material | Brass |
| Adjustable | YES |
| Self-Centering | YES |
| Max. Door Width for 2 Hinges (inches) | 30" |
| Max. Door Width for 3 Hinges (inches) | 34" |
| Width (inches) | 2-3/8" |
| Mounting Type （Degree） | Glass to Glass |
| Glazing Thickness (Inches) | 3/8" to 1/2" |
| Glass to Glass Angle | 135° |
| Max. Door Weight for 2 Hinge (lbs) | 100 LBS |
| Max. Door Weight for 3 Hinge (lbs) | 120 LBS |
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2"
Hinge Swings: 90 degree in and 90 degree Out
Special Feature: Offers choice of standard model at 0 degree closing position or 5 degree Pre-Set Model for tighter closure
Included: Hinge Body, Gaskets, Screws and Template
Use for Residential Bath and Commercial Hotel Applications.
Gasket:
For 3/8" (10mm) Glass, Use one thick Gasket on each side
For 1/2" (12mm) Glass, Use one thin Gasket on each side
Care & Cleaning Guidelines:
Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
| Option | Values |
|---|---|
| Finished/Color | Polished Chrome, Brushed Nickel, Matte Black, Satin Brass, Polished Nickel |
| SKU / reference | Model | Options | Catalog status |
|---|---|---|---|
| CEL045CH | CEL045CH | Finished/Color: Polished Chrome | Listed in supplier catalog |
| CEL045BN | CEL045BN | Finished/Color: Brushed Nickel | Listed in supplier catalog |
| CEL045MB | CEL045MB | Finished/Color: Matte Black | Listed in supplier catalog |
| CEL045SB | CEL045SB | Finished/Color: Satin Brass | Listed in supplier catalog |
| CEL045PN | CEL045PN | Finished/Color: Polished Nickel | Listed in supplier catalog |
