CCAR01

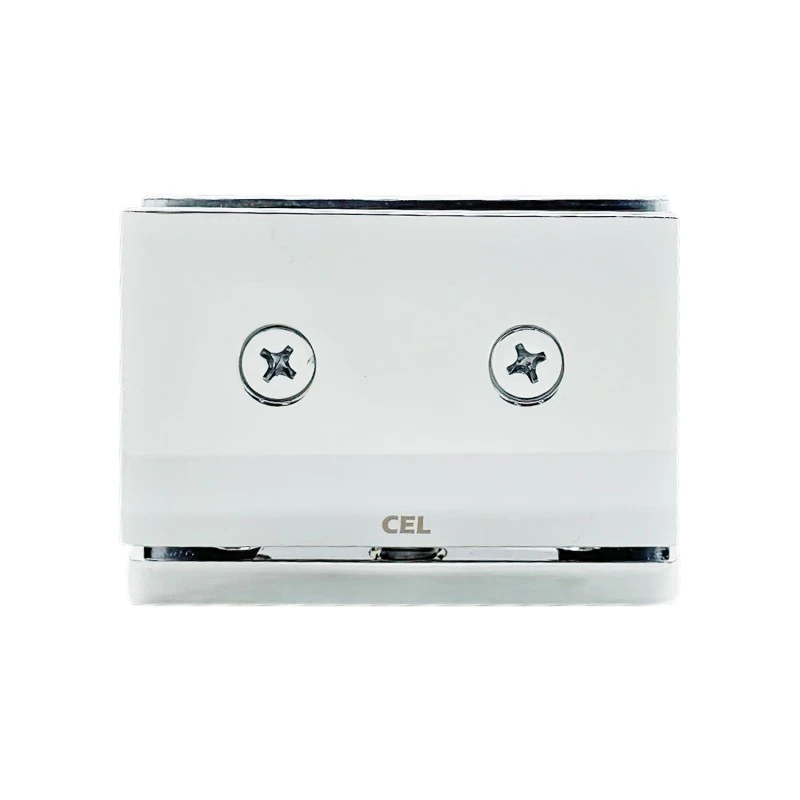

Top or Bottom Mount Hinge for Glass Shower Door
Hinge Swings: 90 degree in and 90 degree Out
Product views19 images
AvailabilityConfirm size & finish
- Glass Fabrication Required
- YES
- MATERIAL
- Brass
- Edge Profile
- Square
- Glazing Thickness (inches)
- 5/16"-3/8"
Top or Bottom Mount Hinge
| Height (inches) | 2 1/16" |
| Edge Profile | Square |
| Material | Brass |
| Max. Door Width(inches) | 31" |
| Max. Door Weight for 2 Hinge (lbs) | 100 LBS |
| Width (inches) | 3 5/8" |
| Self-Centering | YES |
| Mounting Type （Degree） | Head & Sill Mount |
| Glazing Thickness (Inches) | 5/16"-3/8" |
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2"
Hinge Swings: 90 degree in and 90 degree Out
Included: Hinge Body, Gaskets, Screws and Template
Use for Residential Bath and Commercial Hotel Applications.
Gasket:
For 3/8" (10mm) Glass, Use one thick Gasket on each side
For 1/2" (12mm) Glass, Use one thin Gasket on each side
Care & Cleaning Guidelines:
Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
| Option | Values |
|---|---|
| Finish/Color | Polished Chrome, Brushed Nickel, Matte Black, Satin Brass, Polished Nickel |
| SKU / reference | Model | Options | Catalog status |
|---|---|---|---|
| CCAR01CH | CCAR01 | Finish/Color: Polished Chrome | Listed in supplier catalog |
| CCAR01BN | CCAR01 | Finish/Color: Brushed Nickel | Listed in supplier catalog |
| CCAR01MB | CCAR01 | Finish/Color: Matte Black | Listed in supplier catalog |
| CCAR01SB | CCAR01 | Finish/Color: Satin Brass | Listed in supplier catalog |
| CCAR01PN | CCAR01 | Finish/Color: Polished Nickel | Listed in supplier catalog |
